Electric loc series 4000

Description

In 2003 the CFL had the possibility to lease two locs of the series BR 185.520 (type Traxx). Later on in the same year, four more locs were leased, so the total number of that leased locs is six.

In 2003 the CFL has ordered to buy 20 locs of this type. It has been numbered from 4001. The locs were delivered from september 2004 until march 2005.

The locs are suited for 25 kV (50 Hz) and for 15 kV (16 2/3 Hz) (german system).

They normally ride with the new double deck coaches which were also delivered in 2004 and in 2005. End 2005 some locs with double deck coaches were leased out to the BLS in Switzerland.

Details

Number : 4000
Total built : 20
Now in service : 20
Type : Bo-Bo
Same as :
Year built : 2004
Power : 5600 kW
Weight :
Currency : 25 kV / 15kV
Max speed : 160 km/h
Length :
Built by : Bombardier

Other details

Name of locs:

- 4018 : Wiltz (assigned on 10-6-2005, after renovation of the line Kautenbach-Wiltz)

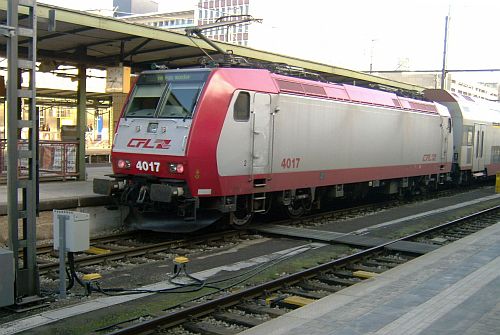

Foto's of Electric locs serie 4000

Click on a small foto to see a large foto.
