Diesel loc series 850

Description

In 1956 the board of the CFL ordered 8 locs (the series 850), the same as SNCF BB 63.000. It came in place of an order for 4 more locs of series 600, which did not succeed much in Luxemburg. The French firm Brissonneau & Lotz had built several locs for the French railways SNCF and also for other railway companies. With 1250 locs built it was one of the largest series in Europe.

Soon CFL wanted to order 13 more locs. Because they had a turbo loader, the power could be raised to 925 hp, thus giving the series 900.

All locs were used primarily for shunting purposes, but until 1964 they were also used in line service, as well for passengers as for goods services. After 1964 (build of the loc series 1800) the locs of series 850 and 900 are only used in shunting services.

The series 851-858 hava all been out of service since 2007.

Details

Number : 851-858
Total built : 8
Now in service : 0
Type : BoBo
Same as : SNCF BB 63.000
Year built : 1956/1957
Power : 825 hp / 607 kW
Weight : 72 tonnes
Max speed : 105 km/h
Length : 14,750 m
Built by : Brissonneau & Lotz
Motor by : SACM

Other details

Loc 853 sold to VFLI (France)
Loc 856 has been preserved
Loc 857 sold to VFLI (France)
Loc 858 sold to VFLI (France)

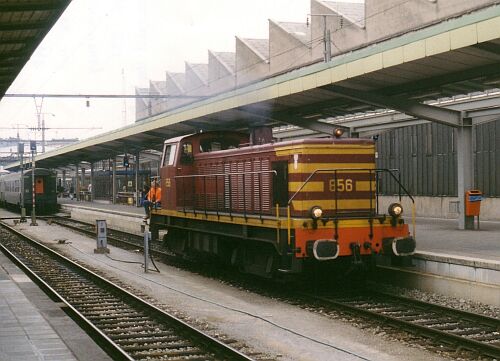

Foto's of Diesel locs serie 850

Click on a small foto to see a large foto.
